DSLA

Overview

The Opale Digital Speech Level Analyser (DSLA) is a specialized hardware instrument designed for precise measurement and analysis of speech signal levels and quality across telecommunications and audio systems. It serves as the hardware agent for the powerful MultiDSLA platform, enabling comprehensive connectivity and analysis for devices and networks under test. Together, they provide a scalable, objective, and standards-compliant solution for device manufacturers, network operators, and service providers.

MultiDSLA Platform

Acts as the central control and analysis software environment.

Provides test configuration, execution, results collection, and advanced reporting.

Supports remote management and automation for distributed test environments.

DSLA Hardware Agents

Serve as the physical interface to the Device Under Test (DUT) or Network Under Test (NUT). They provide precise analog and digital interfacing and measurement capabilities.

 MultiDSLA also supports some software agents VPP for SIP connectivity and OSS for Mobile phones.

DSLA Models

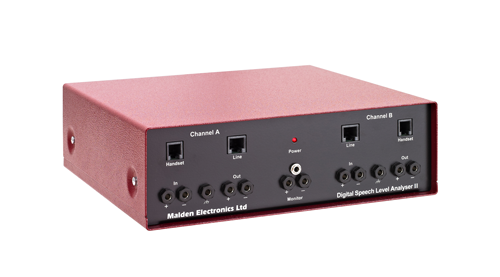

• DSLAIIC2

Compact unit with 2 independent audio channels.

Ideal for desktop or portable testing scenarios.

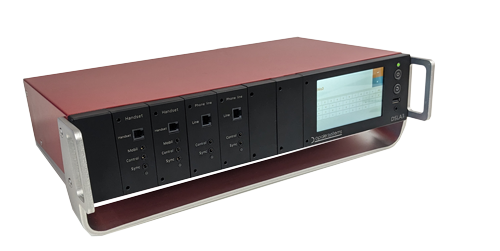

• DSLA3

Modular, rack-mountable 2U chassis.

Can accommodate up to 6 measurement modules for large-scale, high-capacity test environments.

Designed for lab environments and carrier-grade network testing facilities.

Connectivity Options

• PSTN (Public Switched Telephone Network) Lines
• Telephone Handsets (Analog and Digital)
• Mobile Phones (via Jack, USB-C, and Bluetooth interfaces)
• Support for VoIP, 2G/3G/4G/5G, and IMS/VoLTE networks.

Applications

Voice Quality Assessment in Mobile and VoIP Networks.

Handset and Headset Performance Evaluation.

Compliance Testing for Regulatory Certification.

 Use Cases : Voice Quality Testing in the Lab - Voice Network Monitoring - MCPTT/MCx Testing - Drive Testing
